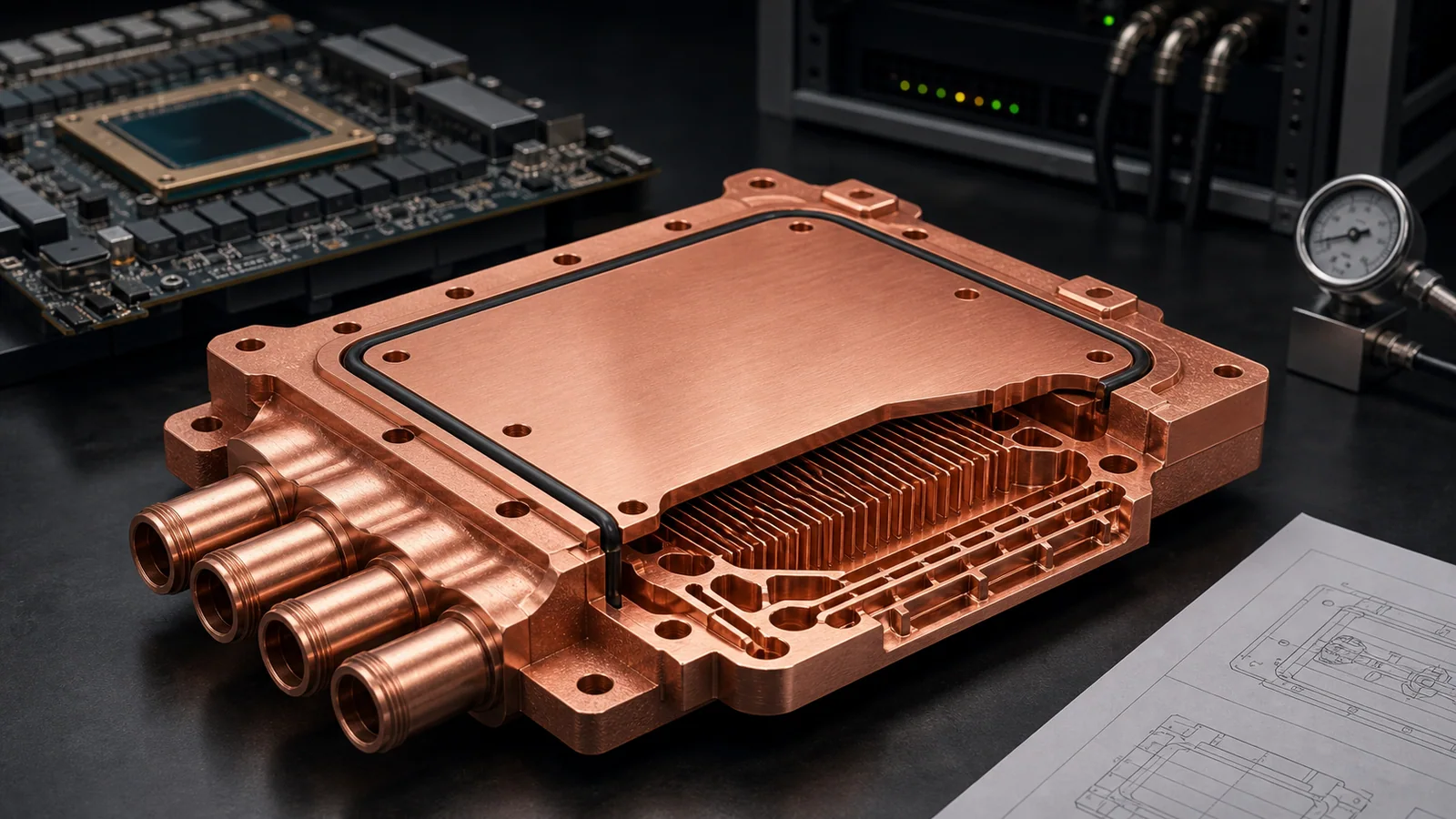

3D Printed Copper Cold Plates for AI Accelerators

AI accelerator cold plates are worth reviewing for copper additive manufacturing when heat density, coolant routing, package height, or manifold integration cannot be solved cleanly by CNC machining, skiving, brazing, or assembly. Send CAD, drawings, quantity, material preference, thermal requirement, coolant condition, pressure limits, critical surfaces, and inspection needs. A quote depends on the part and the information provided.

Why AI Accelerator Cold Plates Need a Different RFQ

AI accelerator cooling is not only a copper plate problem. It is a package, pressure, flow, flatness, serviceability, and verification problem. A cold plate that looks simple from the outside may contain the highest risk inside the flow path.

For copper 3D printing, the best candidates usually have at least one hard constraint:

High local heat flux that needs dense internal features close to the heat source.
Multiple hot spots that require non-uniform flow distribution.
Restricted inlet and outlet positions inside a server or tray envelope.
A thin package where stacked parts, plugs, or brazed covers create risk.
A need to consolidate manifold, plate, and local heat-transfer features.
Prototype geometry that may change after thermal and pressure testing.

If the cold plate is a flat part with open milled channels and a simple cover, conventional manufacturing may be the stronger first route. Copper AM becomes more relevant when internal geometry is the main value.

Start With the Heat-Flux Map, Not Only the STEP File

A STEP file shows shape. It does not explain why a cold plate must exist. For AI accelerator and GPU cooling hardware, the RFQ becomes much clearer when the thermal problem is stated early.

RFQ input	Why it matters
Heat source size and location	Defines whether channels must be local, distributed, or staged
Heat load or target temperature rise	Controls channel density and contact-area review
Coolant type and temperature	Changes compatibility, cleaning, corrosion, and sealing assumptions
Flow rate or pump limit	Prevents channel geometry that the system cannot drive
Allowable pressure drop	Separates high-performance geometry from unrealistic geometry
Working and proof pressure	Drives wall thickness, leak test, and inspection scope
Mounting pattern and clamp load	Controls flatness, deformation, and contact pressure review
Interface flatness and roughness	Defines post-machining and acceptance route
Quantity and project stage	Prototype review, pilot batch, and repeat production need different assumptions

If the heat-load values are not fixed, send the best available estimate and say which values are still open. A useful first quote can be based on stated assumptions, but hidden thermal and pressure requirements usually slow the quote.

Where Copper AM Can Add Value

Copper additive manufacturing is not a universal replacement for machined cold plates. It should be reviewed where it changes the design boundary.

Strong AM candidates often include:

Three-dimensional manifolds that distribute coolant across several heat zones.
Local microchannel, pin-fin, or lattice features under the highest heat-flux area.
Integrated inlet and outlet routing that would otherwise require plugs, welds, or brazed joints.
Channel transitions that cannot be reached by straight tools.
Compact geometry where package height matters more than simple machining cost.
A need to test several internal layouts before committing to a production route.

Weak candidates often include:

Large flat copper plates with simple open channels.
Parts where the only reason for printing is a cosmetic outside shape.
Designs with very narrow blind channels and no cleaning path.
Drawings that require strict internal surface finish but give no finishing access.
Parts where pressure drop is critical but the allowable pressure drop is not stated.

The practical question is not “can it print?” The practical question is whether it can be printed, cleaned, machined, sealed, tested, and accepted.

Channel Geometry Must Leave a Cleaning Path

AI accelerator cold plates often push designers toward dense internal surfaces. Dense channels can improve thermal area, but they also add powder-removal, cleaning, and pressure-drop risk.

Before requesting a quote, review:

Minimum channel width and height.
Longest enclosed channel path.
Smallest bend radius.
Dead-end branches or trapped volumes.
Manifold entry and exit zones.
Port size and access for flushing.
Whether CT, flow, or sectioned coupon verification is expected.

Internal roughness is not automatically a failure. In some cold plates, roughness may support heat transfer. In other designs, it may increase pressure drop or trap particles. The RFQ should say what matters more: thermal transfer, pressure drop, cleanliness, or inspection confidence.

For more channel-specific detail, see the 3D printed copper microchannel heat exchanger guide.

Interface Quality Still Depends on Machining

The internal geometry may be additive, but the cold plate still succeeds or fails at the interfaces. Define these features clearly:

Heat-transfer face flatness and surface finish.
Sealing lands and O-ring grooves.
Threaded ports, tube interfaces, or quick-connect regions.
Bolt holes and mounting datums.
Datum surfaces for inspection.
Areas that require polishing, plating, or protected handling.

Do not specify a high finish everywhere unless every surface truly matters. Most quotes become stronger when they separate critical contact and sealing surfaces from non-critical external surfaces.

Material Review: Pure Copper or CuCrZr

Material choice should follow the operating condition. Pure copper may be reviewed when thermal conductivity dominates and mechanical load is controlled. CuCrZr may be reviewed when strength, thread stability, clamp load, or service temperature matters.

Include:

Required conductivity, if fixed.
Service temperature and thermal cycling expectation.
Clamping load or mounting condition.
Coolant chemistry and corrosion concern.
Need for heat treatment, stress relief, or material certificate.
Post-machining and cleaning requirements.

Use the materials overview if the alloy is open.

Inspection Should Match the Failure Mode

Do not ask for maximum inspection by default. Ask for inspection that matches the real risk.

Risk	Practical inspection or test
Leak path	Pressure hold, proof pressure, helium leak test when required
Hidden blockage	Flow test, pressure drop check, CT when justified
Interface contact issue	Flatness, roughness, CMM, contact face inspection
Powder or particle concern	Flush record, cleanliness requirement, drying and packaging
Material concern	Conductivity, density, heat treatment record, material certificate
Thermal uncertainty	Thermal test plan, instrumented prototype, or customer-side validation

Prototype work may start with geometry, pressure, leak, and flow checks. Qualification hardware may need deeper documentation.

Separate the package review from the loop acceptance

For multiple accelerator packages, keep the contact stack, clamping conditions and heat-source locations in the same revision as the fluid model. A satisfactory total coolant flow does not establish how that flow divides between packages. Define whether branch flow, local temperatures, or both must be demonstrated, and which system-level work remains with the customer.

Use the existing dual-GPU design-review scenario to structure the package discussion; it is illustrative, not a measured customer result. Then use the flow-distribution acceptance guide for the test decision and the cold plate RFQ checklist for supplier responsibilities. If these details are still open, start an inquiry with the information available.

Practical RFQ Email

For an AI accelerator copper cold plate quote, send STEP or native CAD, drawing if available, quantity, material preference, heat source map, coolant, flow rate or pressure drop limit, working pressure, critical surfaces, and inspection requirements.

Send files to info@szcomo.com. If only the geometry and quantity are ready, send them with the requirements you know. We will review the part, ask focused questions when needed, and quote according to the project information provided.
